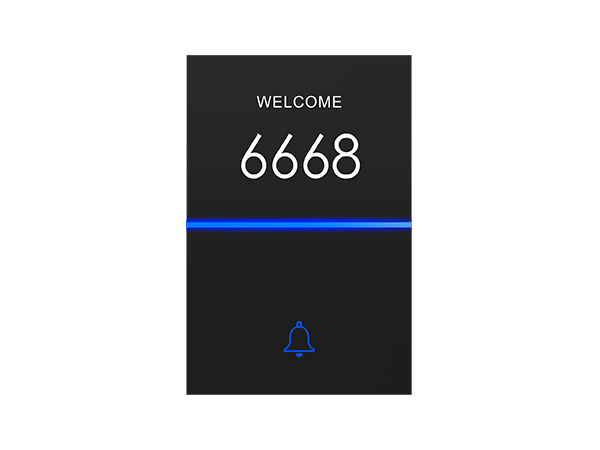

QA7 Hotel Doorplate

QA7 Hotel Doorplate provides room number display, DND, MUR and Please Wait functions with 12V low voltage dry contact connection. Ideal for hotel guest room projects.

Product details

QA7 Hotel Doorplate

The QA7 Hotel Doorplate is designed for hotel guest room entrances, providing clear room identification and professional room status indication. Supporting DND, MUR and Please Wait functions, it offers a reliable low voltage solution for modern hospitality projects.

Room Number Display
DND / MUR / Please Wait Functions
Room Status Indication
12V DC Low Voltage
120 × 80mm Standard Size

Hotel Room Status Display Functions

Complete Guest Room Status Management

DND (Do Not Disturb)
Allows guests to request privacy through clear entrance indication.

MUR (Make Up Room)
Provides housekeeping status indication for efficient room service.

Please Wait
Displays temporary waiting status at the guest room entrance.

Room Number Display
Provides clear room identification for hotel guests and staff.

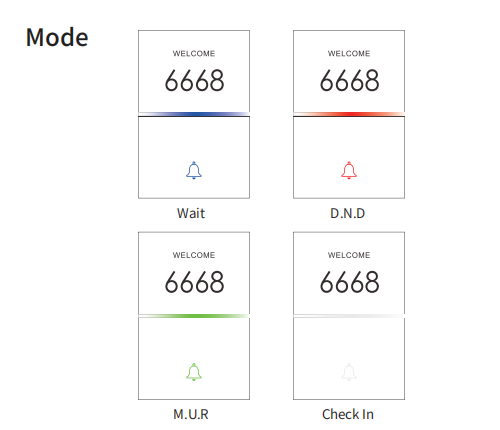

QA7 Hotel Doorplate DND MUR Please Wait Function Display

Low Voltage Wiring Connection

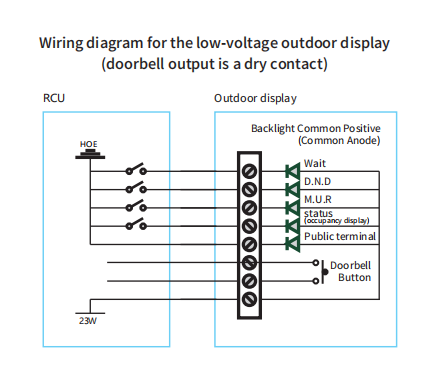

QA7 Hotel Doorplate 12V Low Voltage Dry Contact Wiring Diagram

Simple and Reliable Installation

The QA7 Hotel Doorplate adopts a 12V DC low voltage design, providing safe and stable operation for hotel room applications.

Power Supply
12V DC Low Voltage

Connection Type
Dry Contact Input

Suitable for hotel projects requiring clear room status indication and easy installation.

Technical Specifications

Product Type

Hotel Doorplate / Room Status Display Panel

Functions

Room Number Display / DND / MUR / Please Wait

Power Supply

12V DC Low Voltage

Connection

Dry Contact

Dimension

120 × 80mm

Application

Hotels / Resorts / Hospitality Projects
